QT10-15 automatic Block Machine

1. The Tiger QT10-15 machine uses four galvanized pipes with sliding bearings to ensure precise mold movement. The gear and shaft balancing system ensures smooth movement of the male and female molds. Concrete feeding uses rotary, convective, and forced feeding methods to ensure block density and shorten the feeding cycle. The feeder is driven by two cylinders and two bent arms, making the feeder fast, durable, and stable.
2. The hydraulic system of the Tiger QT10-15 block making machine uses a proportional directional valve. This valve can adjust the flow rate and buffer the cylinders during the production process. Therefore, it protects the cylinders, extends their service life, and improves the operating speed and flexibility of various components.
3. The vibration system of the block making machine adopts German frequency conversion technology. The vibration motor uses frequency conversion control. The vibrator lubrication uses oil immersion, which improves the service life of the vibrator bearings and gears.
4. The operating system uses an imported PLC control system, integrating mechanical and electrical equipment. The equipment can operate automatically in a cycle.
5. The molds undergo heat treatment processes such as quenching, tempering, carburizing, and boronizing, which improves their service life.

QT10 Block Machine Production Capacity

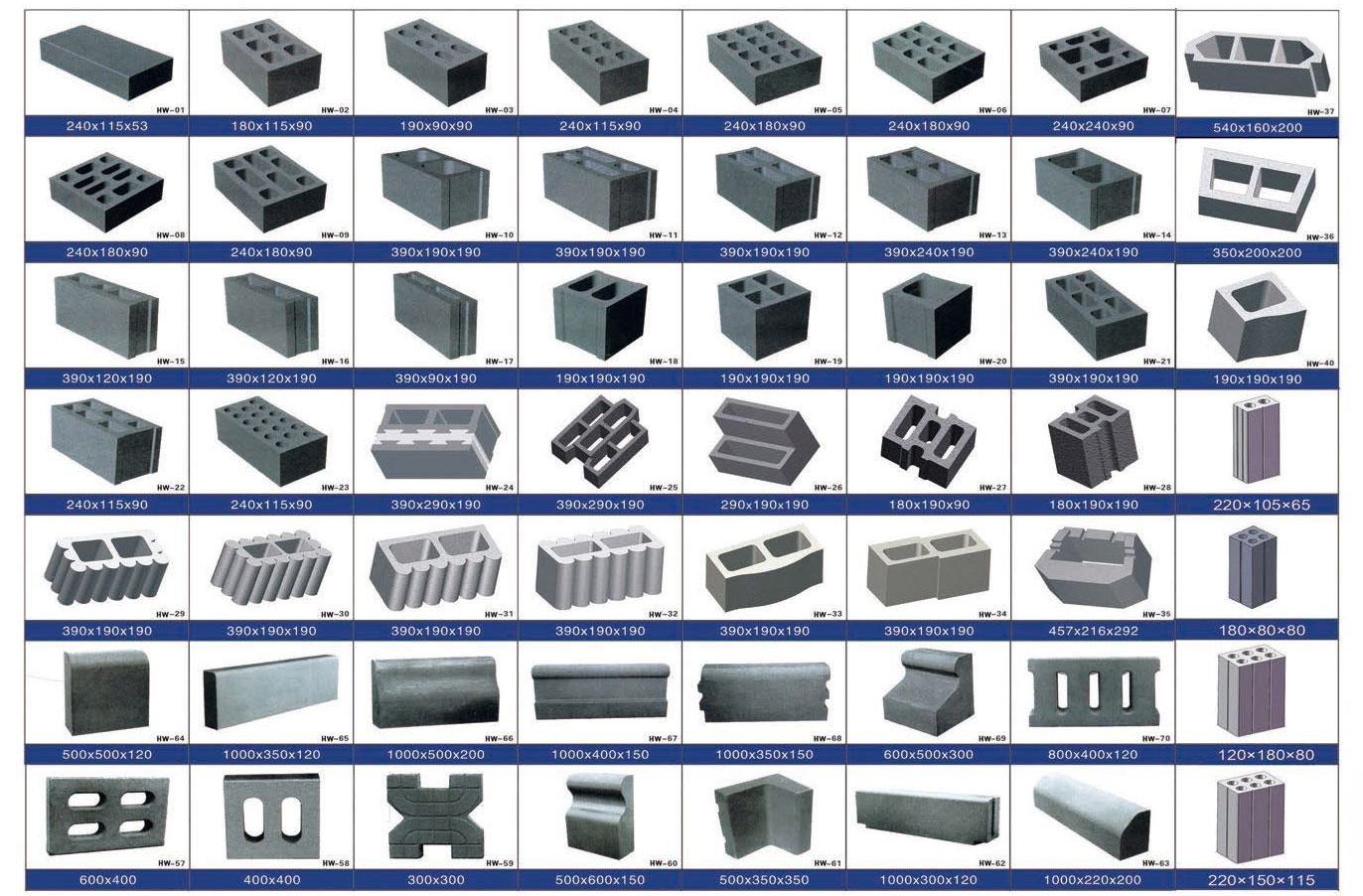

Concrete block sample

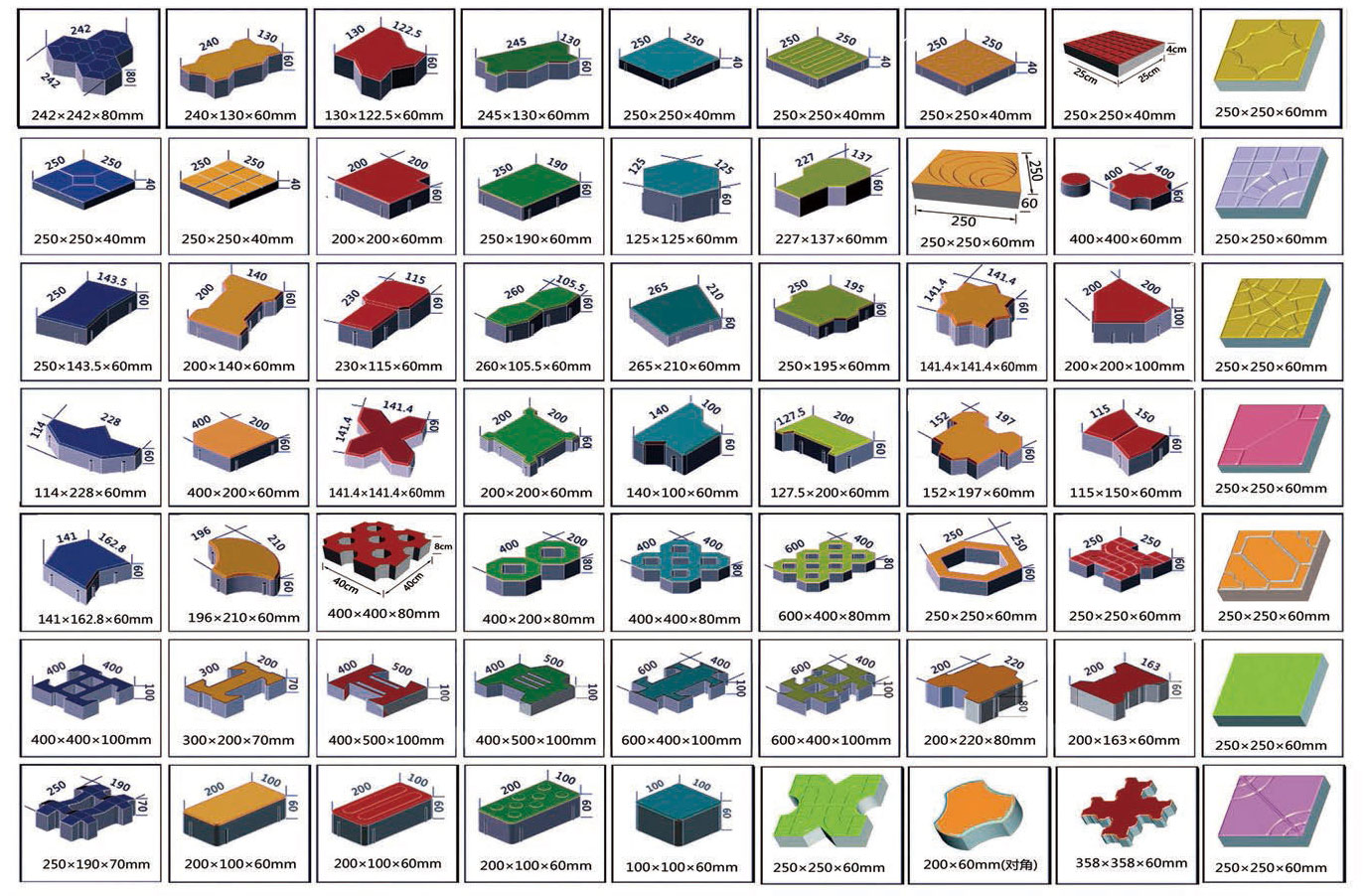

Cement brick sample
