Tiger block machine
QT4-15 block making Machine Equipment details

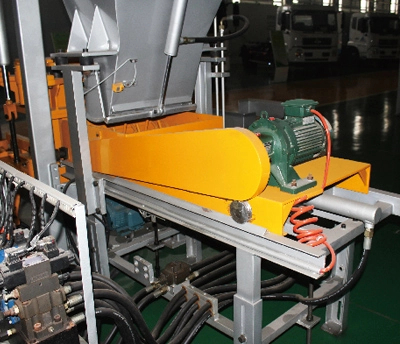

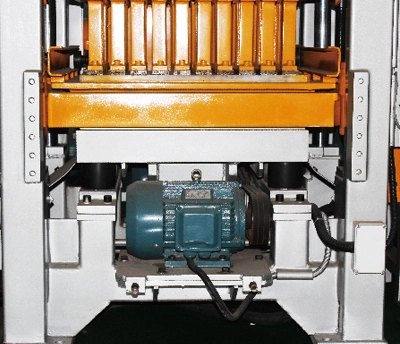

 block machine Vibration system |  brick machine feeding system |

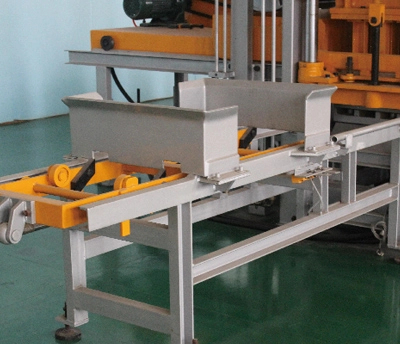

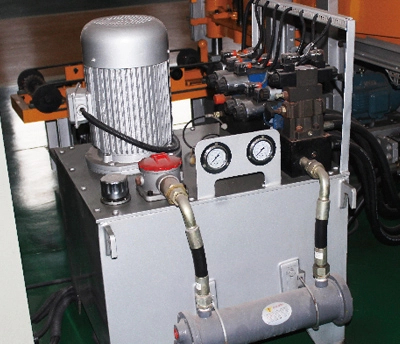

 block machine Hydraulic power station |  Pallt conveyor |
Main Technical Parameters:
| Forming method | Vibration compression molding |
| Vibration frequency | 3800-4500 |
| preset pressure | 25mpa |
| Molding cycle | 15-20(s) |
| Exciting force | 68KN |
| Installed capacity | 20(kw) |
| Total Weight | 6200（kg） |
| Exterior specifications | 9450×3300×2700(mm) |
| Pallet specifications | 980×560×20(mm) |
block making machine video
Using fly ash / tailings sand / desulfurization ash / slag / slag / stone waste / calcium carbide slag / phosphogypsum to make bricks, the waste utilization rate is more than 90%, each line consumes nearly 100000 tons of solid waste per year, with high product quality (strength ≥ 20MPa) and low cost. The main equipment of the production line can produce porous bricks and hollow blocks of different specifications by changing molds.
| Block sample | Product size (mm) | Pcs./Pallet | Pcs./Hour | ||
 | 240*115*53 | 20 | 5100-6000 | ||
 | 200*100*60 | 10 | 1600-1800 | ||
 | 225*112.5*60 | 10 | 1600-1800 | ||
 | 390*140*190 | 4 | 800-900 | ||
 | 400*200*200 | 3 | 600-700 | ||
It adopts crushed stone powder, sand, stone and cement, and can add a large number of industrial wastes such as fly ash, slag, steel slag, coal gangue, ceramsite and perlite.
One machine is multi-purpose, and various specifications of blocks can be produced by changing the mold:
① Perforated brick and hollow block; ② Ceramsite thermal insulation block; ③ Composite thermal insulation concrete block;
The block machine adopts German frequency conversion technology:
◇ improve the production efficiency and environmental protection by 30%
◇ it can add color fabric cloth device to produce various specifications of color pavement bricks
