Tiger block machine
The Tiger Planetary Concrete Mixer outperforms traditional mixers with its innovative design. Unlike ordinary mixers that rely on single-axis rotation, creating dead zones and uneven mixing, the Tiger model uses a planetary motion system. Here, multiple blades rotate around a central axis while also spinning on their own axes, ensuring thorough and homogeneous blending without blind spot. This advanced mechanism enhances mixing efficiency, reduces energy consumption, and minimizes noise and pollution. Additionally, it offers superior adaptability across various materials, making it ideal for high-performance concrete production and other industries requiring precise consistency.

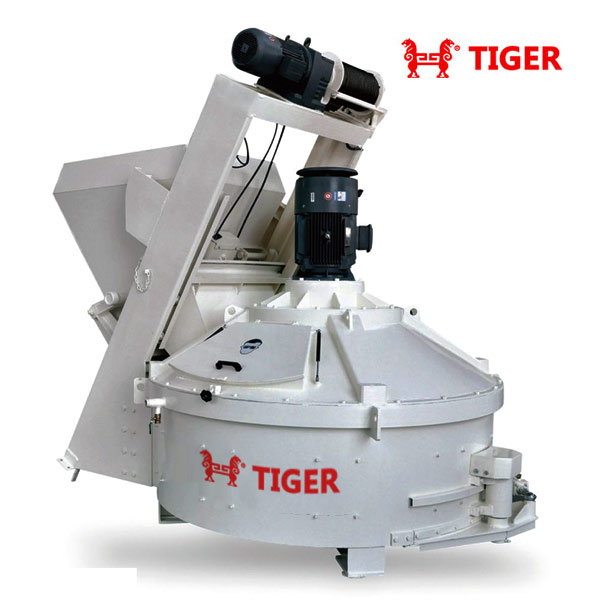

China Planetary Concrete Mixer
Technical Parameter
| Item/Type | MP330 | MP500 | MP750 | MP1000 | MP1500 | MP2000 | MP2500 |
| Outp capacity | 330 | 500 | 750 | 1000 | 1500 | 2000 | 2500 |
| Input capacity(L) | 500 | 750 | 1125 | 1500 | 2250 | 3000 | 3750 |
| Input capacity(kg) | 800 | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 |
| Diameter of mixing trough(mm) | 1540 | 1900 | 2192 | 2496 | 2796 | 3100 | 3400 |
| Mixing power(kw) | 15 | 18.5 | 30 | 37 | 55 | 75 | 90 |
| Mixing blade | 1/2 | 1/2 | 1/3 | 2/4 | 2/4 | 3/6 | 3/6 |
| Side scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bottom scraper | – | – | 1 | 1 | 1 | 2 | 2 |
| Weight(kg) | 1700 | 2000 | 3500 | 6000 | 7000 | 8500 | 10500 |
Quality Mini Planetary Concrete Mixer
