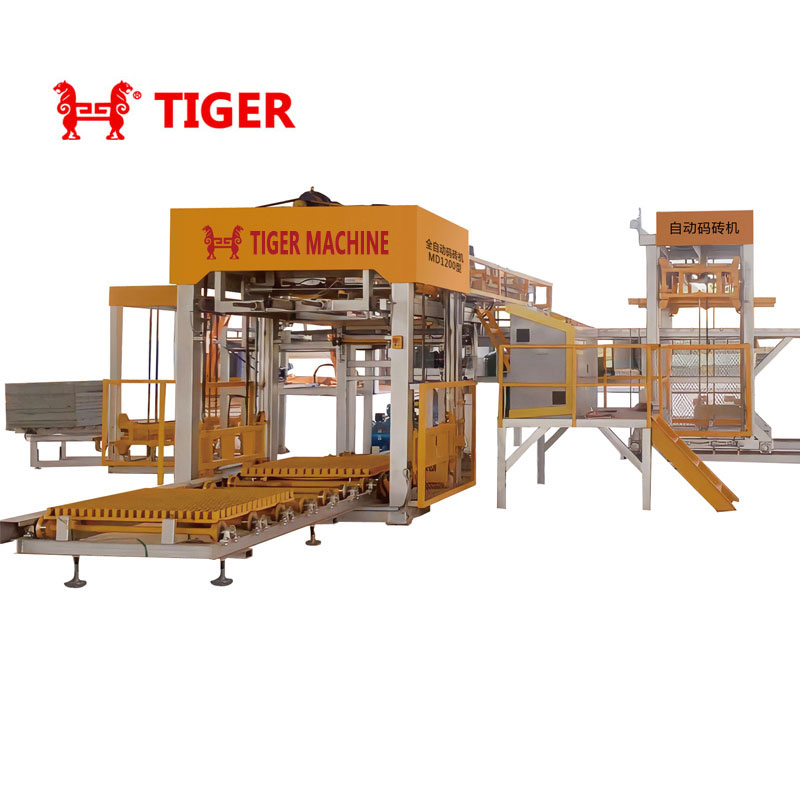

Offline Concrete Block Automatic Cuber for Palletization

Offline Concrete Block Automatic Cuber for Palletization is The Tiger automatic brick separation and stacking line for concrete blocks can automatically separate the concrete blocks from the pallets and stack the concrete blocks into stacks with forklift access holes. This eliminates the need for pallet recycling, improves resource utilization, saves on labor costs, reduces the labor intensity of workers, and increases the automation level and production efficiency of brick manufacturing.

Send Inquiry Live Chat

Product Details
Advantages and Features

Offline Type Automatic Block Cuber System Technical Parameters

Item	Parameter
Land Area	19000x13000mm
Weight	18000kg
Brick Palletizing Size	1000 -1200mm ( L or W )
Cycle Time	15s – 18s
Power	34.15kw
Max Height of Stacked Blocks	1400mm
Capacity	3200-3800pcs/ day
Applicable Block Type	All Kind Blocks
Applicable Block Making Machine	All Kind Block Machines

concrete block automatic palletizing system

Automatic Block Packing Machine

Automatic collecting bricks advantage(Cuber/Palletize/Wrapper/Strapper )
1.Automatic Brick Collecting stacker machine System can Collect and stack up produced concrete bricks.meanwhile,it can clean and stack up the pallets
2.Save 5-6 persons,improve production efficiency
3. 360 degree rotated Manipulator stacker crane with frequency converter and proportional valve control system. So the Stacker can clamp bricks precisely, operate stably
4. Independent intelligent console,Using German PLC components and ICs.LCD display realizes Man-Machine dialogue.
5.Unique way to push and restack bricks.Bricks can be restacked in a square size(Max:1.2*1.2M)
6.Using German Close and photoelectricity switches to ensure each action moves correctly。
