QT4-15 block making Machine

QT4-15 block making Machine Equipment details

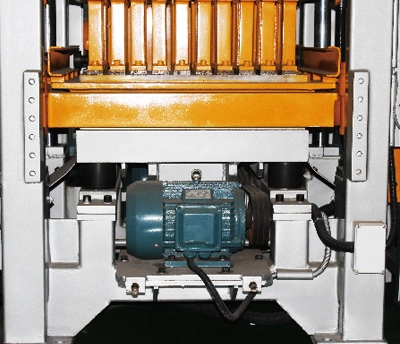

block machine Vibration system	brick machine feeding system

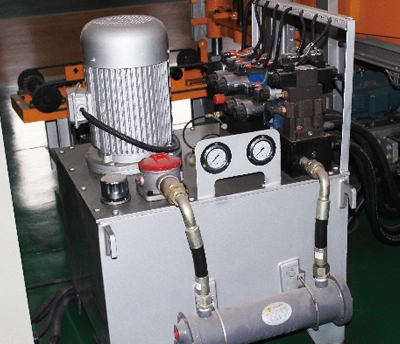

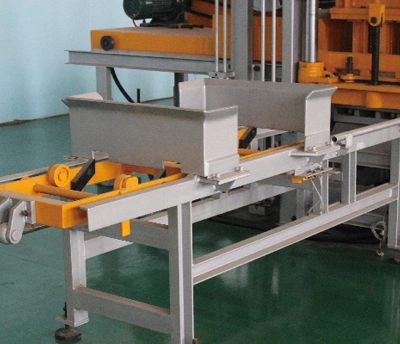

block machine Hydraulic power station	Pallt conveyor

Main Technical Parameters:

Forming method	Vibration compression molding
Vibration frequency	3800-4500
preset pressure	25mpa
Molding cycle	15-20(s)
Exciting force	68KN
Installed capacity	20(kw)
Total Weight	6200（kg）
Exterior specifications	9450×3300×2700(mm)
Pallet specifications	980×560×20(mm)

block making machine video

Using fly ash / tailings sand / desulfurization ash / slag / slag / stone waste / calcium carbide slag / phosphogypsum to make bricks, the waste utilization rate is more than 90%, each line consumes nearly 100000 tons of solid waste per year, with high product quality (strength ≥ 20MPa) and low cost. The main equipment of the production line can produce porous bricks and hollow blocks of different specifications by changing molds.

Block sample	Product size (mm)	Pcs./Pallet	Pcs./Hour
	24011553	20	5100-6000
	20010060	10	1600-1800
	225112.560	10	1600-1800
	390140190	4	800-900
	400200200	3	600-700

It adopts crushed stone powder, sand, stone and cement, and can add a large number of industrial wastes such as fly ash, slag, steel slag, coal gangue, ceramsite and perlite.
One machine is multi-purpose, and various specifications of blocks can be produced by changing the mold:
① Perforated brick and hollow block; ② Ceramsite thermal insulation block; ③ Composite thermal insulation concrete block;
The block machine adopts German frequency conversion technology:
◇ improve the production efficiency and environmental protection by 30%

◇ it can add color fabric cloth device to produce various specifications of color pavement bricks

1. The block making machine can produce hollow bricks, solid bricks, and paving bricks by changing the molds. The molding method combines vibration and hydraulic pressure, resulting in high-strength and high-density bricks.
2. Concrete is forcibly fed into the mold by three shafts with blades, ensuring fast and even distribution. The vibration system uses oil-immersed lubrication for excellent lubrication.
3. The variable frequency vibration motor operates continuously, while other motors operate intermittently, resulting in greater energy efficiency.
4. The concrete feeding machine, pallet feeding machine, upper mold, and lower mold are all driven by a hydraulic system.
5. The molds are heat-treated and carburized, resulting in a longer service life.
